UMB Floor Shadow Line

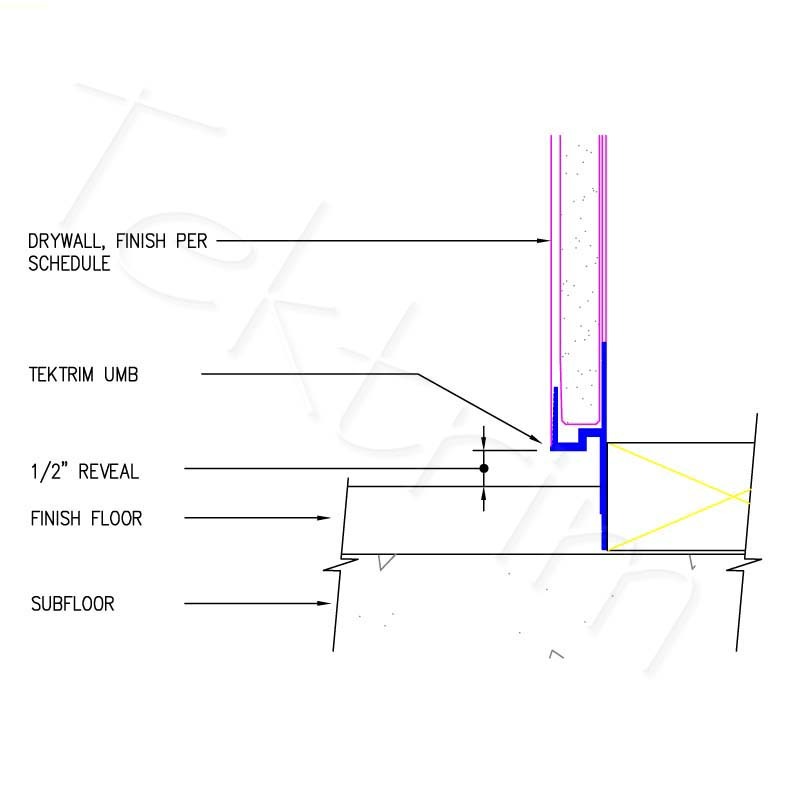

Shadow line reveals at the floor are being used more frequently by architects to create the illusion of floating walls in modern and contemporary designs. For installers floor shadow lines can be challenging to achieve, but with Tektrim Universal Metal Base (UMB), it’s easy to create straight and clean floor shadow reveals of any dimension in little time. Tektrim Universal Metal Base (UMB) is made of solid aluminum, which is very sturdy, and is designed to make installation outcomes ideal for your contemporary projects.
*This product can be used for reveals under 1/2” but may need to be cut depending on finish floor thickness.
*UMB comes in mill finish. Other finishes include epoxy primed, anodized, and powder coated. Finishes other than mill finish are special order.
Available for 5/8” and 1/2” drywall.
Tektrim cannot be responsible for discrepancies due to improper installation.
Downloads
Below are the AutoCad Drawings and details you need to integrate the Tektrim details into your next project.
Resources
Find additional resources here.
Let us know if there are any other resources you need.
