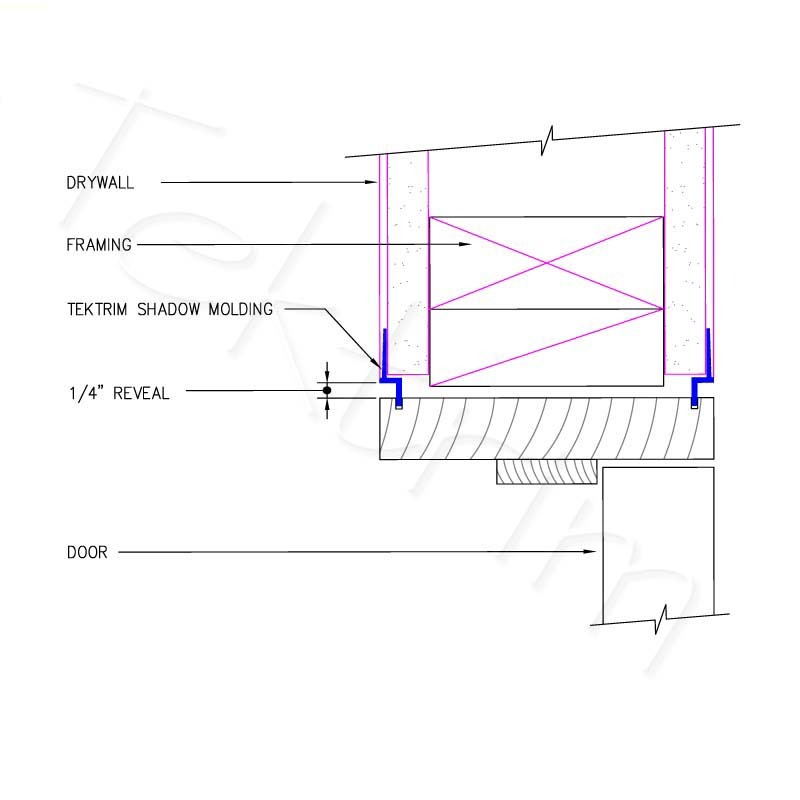

1/4” Shadow line Z- Metal Head & Jamb

This detail is becoming more frequently used in many contemporary projects where the shadow line reveal is continuous and implied in both the base and door jamb. It can be applied in conjunction with our One-Piece 1/4” Shadow Line base or Tektrim UMB with base. Made from aluminum and designed to stay sturdy and strong.

Looking to grab all the Tektrim products at once?
Download All Products Here

Tektrim cannot be responsible for discrepancies due to improper installation.


Below are the AutoCad Drawings and details you need to integrate the Tektrim details into your next project.


Find additional resources here.
Let us know if there are any other resources you need.
